Award winning Fishing Kayak incorporating a modular, tri-console system, with a motor propelled option featuring multiple electronics features.

AWARDS:

ICAST 2014 - Best of Show - Predator XL

ICAST 2014 - Best Boat - Predator XL

ICAST 2016 - Best Boat - Predator PDL

The Old Town Predator series is a group of high end fishing kayaks. The Advanced R&D team at Johnson Outdoors Watercraft was tasked with utilizing an existing motor unit from a sister company; Minn Kota motors, and designing a console that connects to the Predator 13 hull.

Before leaving Johnson Outdoors I had produced the Industrial design for the new PDL Drive and created the initial boat CAD for how the system would integrate into the Predator Kayak. I also re-designed the seat to incorporate a storage pocket underneath.

Role: Responsible for all Industrial Design work from ideation phase to production CAD (Solidworks) geometry.

Project duration: 09.2013 – 02.2014 @ Johnson Outdoors Watercraft
Project status: Predator XL launched summer 2014, Predator PDL launched summer 2016

http://www.predatorkayak.com/



       
     

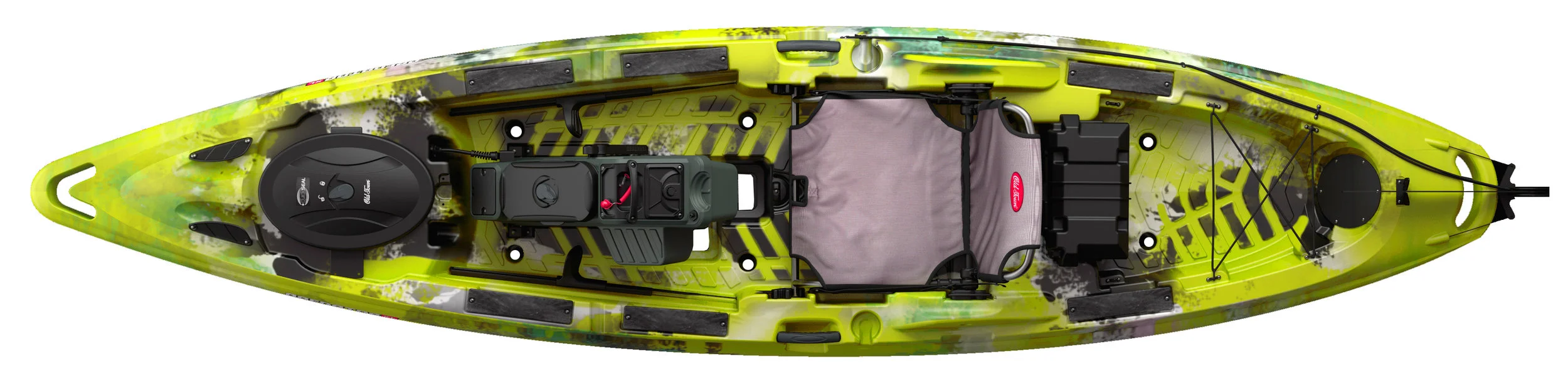

Predator XL
       
     
Predator XL

Interchangeable Console Options:

Originally I was assigned to future proof the Predator XL to fit a motor (Minn Kota), utility, flush (Exo-Ridge) and peddle drive console. It was determined that the peddle drive would take much longer to develop and may require a different port design. For this reason, only three consoles were developed to go with the Predator XL.

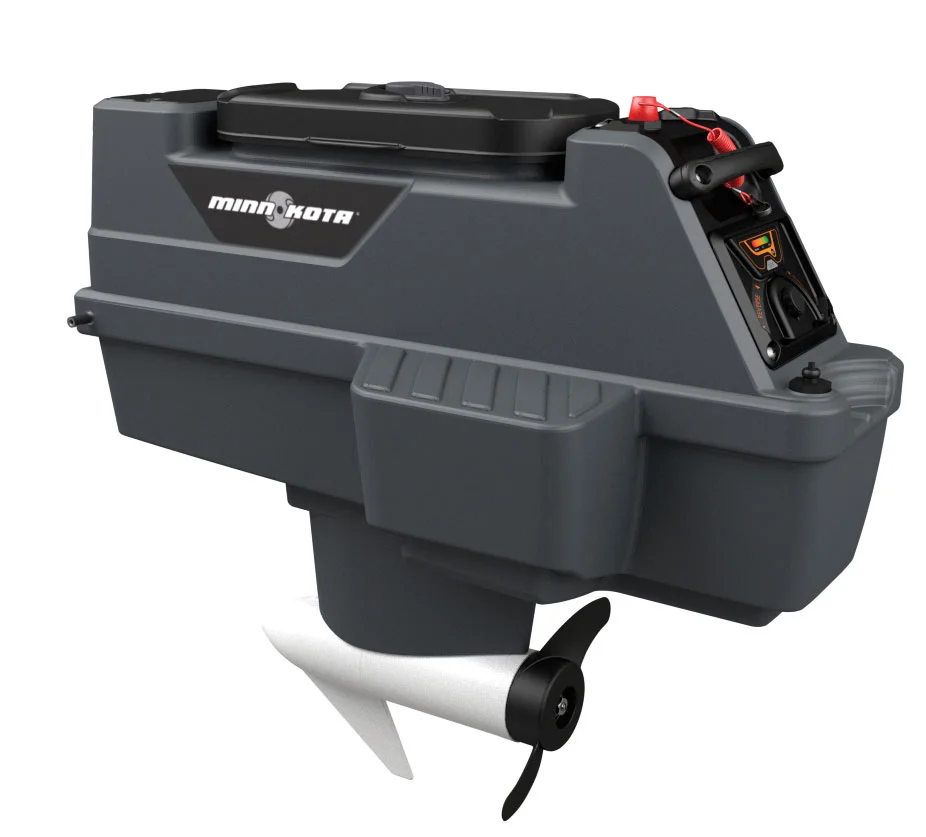

Minn Kota Console:

-45-pound thrust saltwater grade electric motor.

-Variable speed control with forward and reverse.

-LED charge indicator.

-Internal water proof USB charger.

-Sonar head unit mount (top) and sonar transducer mount (bottom) with internal wire and battery storage.

-Dry storage compartment.

-Easy raise motor automatically disconnects kill-switch and deploys a kickstand to help clear weeds from prop or avoid obstructions.



Utility Console:

-Sonar head unit mount (top) and sonar transducer mount (bottom) with internal wire and battery storage.

-Dry storage compartment.



Exo-Ridge Console:

-Continuation of Exo-Ridge pattern on the Predator deck to provide an unobstructed fishing platform (mainly for fly-fishing).

-Transducer mount on boat hull.



       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
